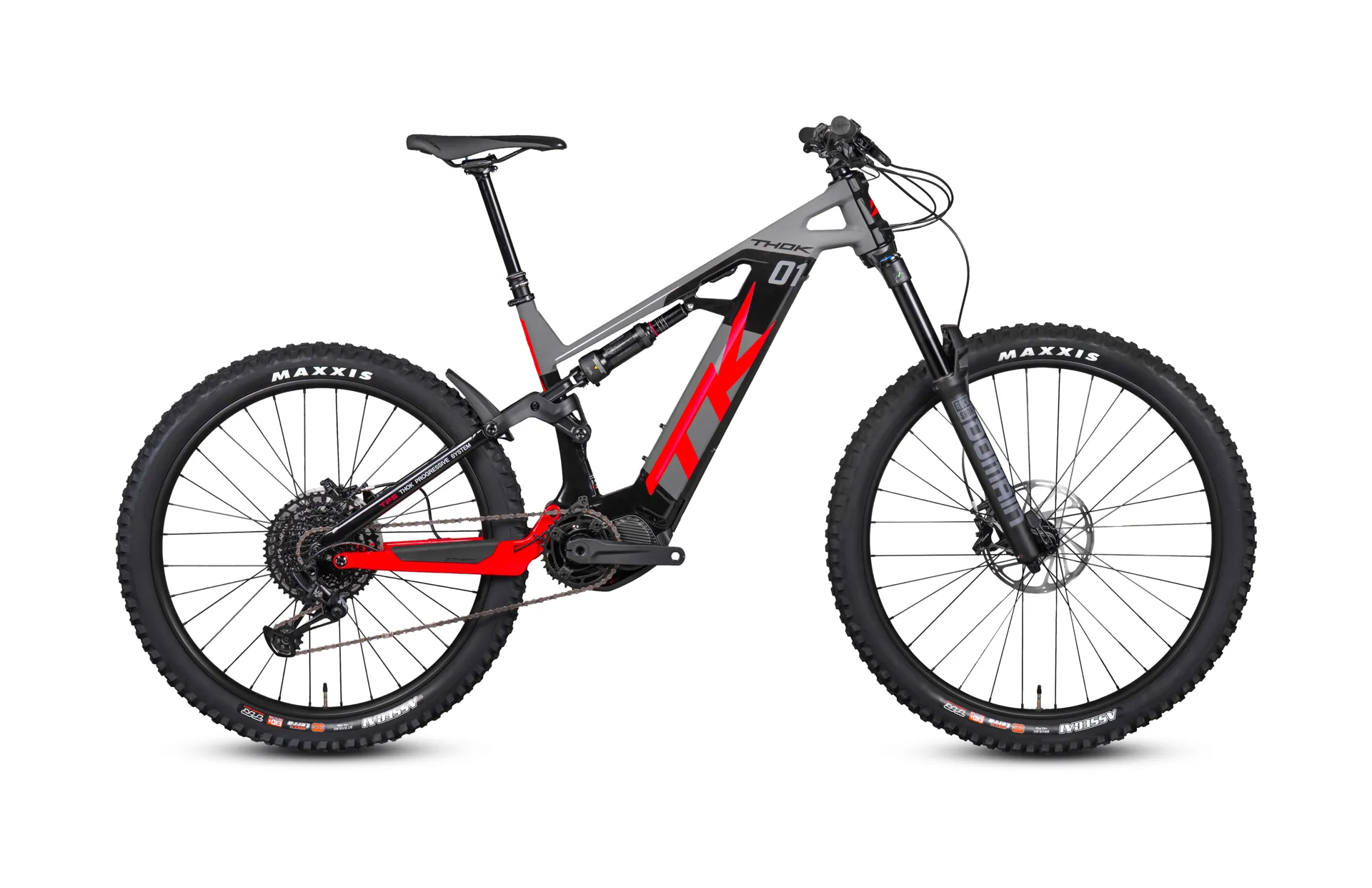

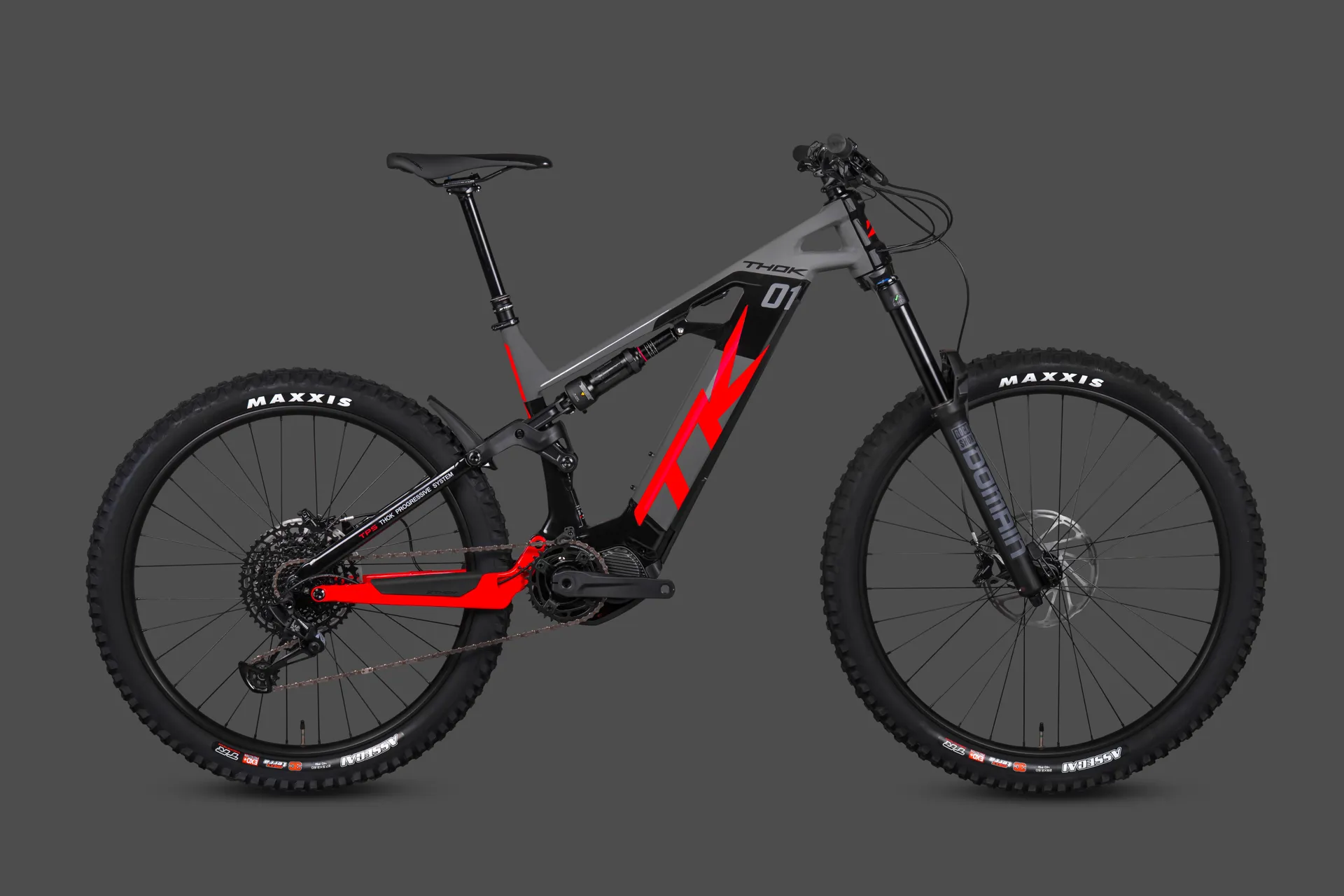

The tk01 extends your rides and allows you to enjoy even the most extreme trails while having fun in safety.
170mm travel, mullet wheels, 4-piston brakes, integrated 630 wh battery, new Shimano ep8 motor.
The "precise front end" for head tube tapered 1.8 marks an epochal change in the steering area of e-mtbs.
A "steamroller" without compromising agility! With 29" and 27.5" mullet wheels, it is the ideal companion for fans of adrenalinic activities and strong sensations that e-enduro can give.
Tcg thok control geometry plus
its the innovative geometry from thok represented by an elongated top tube "viper head", and a new standard tapered head tube 1.8, with 64.5 steering angle, straight seat tube of 75.5, ensuring riding comfort and total control on technical singletracks.
Pfe precise front end
the new alloy hydroformed viper head top-tube, projected for the innovative tapered head-tube 1.8, and the rear connection to the verticalized down-tube, revolutionize the steering-area concept. Supreme stiffness and riding accuracy at the forefront with ebike-leading technologies.
Lowered standover
improved frame stiffness, increased handling, and easier saddle's height regulation.
Thok DT integrated battery
the special design of the down tube and its vertical position integrate the new 630 wh battery, allowing to place it close to the engine, in order to ensure a low center of gravity - a highlight of thok e-bikes' philosophy. This means longer rides uphill with the same fun on downhill trails. Rideability, handling, and reactivity to stay true to the claim performance first.
Shimano ep8 engine
ep8 is the revolutionary second generation engine produced by shimano. With its 2.6 kg weight it is, to date, one of the lightest drive units available on the market and, thanks to the increase of the maximum torque to 85 nm and the reduction of friction by 36%, it ensures great riding power. Pedaling with fluid, direct and natural delivery, guaranteeing complete control of the bike.Combined with the e-tube project app, it is fully customizable to best adapt to each trail and to the user's needs.
Tps thok progressive system oversize
thok's successfull rear progressive system, designed for e-mtb, uses a metric rear shock and a dedicated rocker. The progressive suspension, together with the oversize chainstays, ensure rigidity, better handling, and perfect traction on all types of terrain.
Thok disk mount
for greater efficiency and powerful braking, the brake caliper has been mounted directly on the frame (without any adapter).
Mullet wheels
front and rear wheels have different diameters, respectively 29" and 27,5. In combination with the new tcg plus technology, it allows to easily overcome challenging obstacles and provide optimal traction and ride-ability in every situation.
"e-enduro" set up
equipped with the latest generation components, the tk01 is the uncompromising e-enduro:
- fork: rock shox yary 170mm
- shock absorber: rock shox deluxe r 170mm
- brakes: SRAM guide t with 4 pistons
- new Shimano "concave" switch unit for assist
comfy engine start
the easy touch button is placed under the top tube in a protected but easily-accessible position.
Details
the tk01 is equipped with a polypropylene rear fender and a light-impact-resistant engine cover.
Accessories (not included)
available for purchase:
- "t-wings" mudguard fins in shockproof tpe
- carbon battery and engine covers made in italy
- adapter to recharge the battery when removed from the frame
| specifications | |
|---|
| frame | alloy frame 6061 t4 t6 with 170mm rear travel, forged and cnc parts, hydroformed tubes, headtube tapered 1.8 and integrated battery. |
| Sizes | s - m - l - xl |
| power supply | shimano ep8 - 85 nm (250w) - 630wh integrated Shimano battery |
| display & shifter | cyclo computer sc-e7000 with 1,39" screen - ergonomic remote sw-e7000 (eco, trail, boost e power-walk) |
| fork | rock shox - domain 29" boost, debonair 170 mm, e-mtb, 44 offset, 1.8 tapered. |
| Rear shock | rock shox - deluxe select r , thok custom tuned |
| brakes | sram - guide t, 4 pistons calliper, 200mm centreline rotor |
| rear derailleur | sram - nx, 12s |
| shifter | sram - sx eagle trigger, 12s |
| cassette | sram - eagle 12s (11-50) |
| chain | sram - eagle 12s |
| crank | fsa 165mm - chainring 34t |
| wheels | thok drift - 29"x30 mm front & 27.5"x35 mm rear |
| stem | thok forged, 35mm front clamp oversize, 37mm length |
| handlebar | thok 35mm, rise 20mm, 780mm width |
| grips | thok - lock-on grip, regular size |
| tires | maxxis - assegai 29x2.6 front & 27.5x2.6 rear. 3c / exo+ / tr |
| seatpost | thok telescopic dropper post (125mm size s - 150mm size m - 170mm sizes l and xl) |
| saddle | thok fit in chromo |
| pedals | pedals in polyethylene |
| weight | 24.8 kg size m without pedals |
geometry
| | | | |
|---|
| size | s | m | l | xl |
| height | 154 - 167cm | 168- 177cm | 178- 184 cm | 185cm and over |
this size table based on your height is only a suggestion.The optimal frame size also depends on other physical characteristics and personal riding style.
| S | m | l | xl |
|---|
| a- top tube length, horizontal | 582mm | 600mm | 629mm | 660mm |
| b- reach | 423mm | 439mm | 464mm | 491mm |
| c- stack | 623mm | 623mm | 638mm | 654mm |
| d- seat tube length - centre to top | 385mm | 415mm | 450mm | 495mm |
| e- chainstay length | 453mm | 453mm | 453mm | 453mm |
| f- head tube angle | 64.5 | 64.5 | 64.5 | 64.5 |
| g- seat tube angle | 75.5 | 75.5 | 75.5 | 75.5 |
| h- bb drop | 15mm | 15mm | 15mm | 15mm |
| i- wheel base | 1212mm | 1233mm | 1265mm | 1298mm |
| k- head tube length | 105mm | 115mm | 131mm | 149mm |
| l- fork offset | 44mm | 44mm | 44mm | 44mm |
| m- bottom bracket height | 355mm | 355mm | 355mm | 355mm |
| handlebar width | 780mm | 780mm | 780mm | 780mm |
| stem length | 37mm | 37mm | 37mm | 37mm |
| crank length | 165mm | 165mm | 165mm | 165mm |
| dropper | 125mm | 150mm | 170mm | 170mm |
| standover | 783mm | 783mm | 783mm | 783mm |
| trail | 133.6mm | 133.6mm | 133.6mm | 133.6mm |
